koa-latest

Enable writeable gradebook

These instructions will allow you to enable writeable gradebook.

Here is the link for github repo of Frontend Gradebook app, https://github.com/edx/frontend-app-gradebook

Following are the steps to enable writable gradebook.

  1. Log into server.

  2. Switch the user to edxapp.
    sudo su edxapp -s /bin/bash

  3. Activate the virtual env.
    source /edx/app/edxapp/edxapp_env

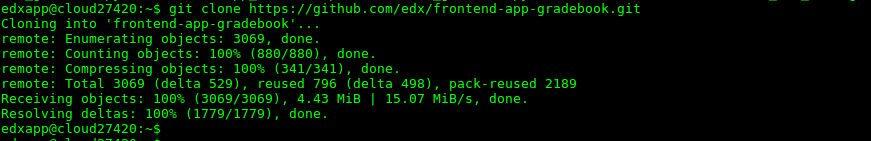

  4. Clone the github repo.
    git clone https://github.com/edx/frontend-app-gradebook.git Clone Gradebook

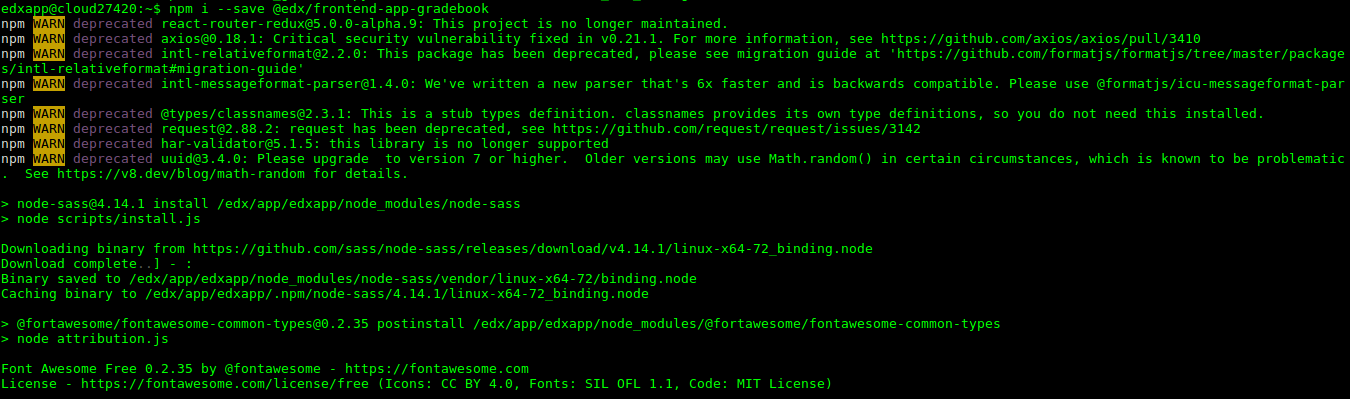

  5. Execute the npm command to install gradebook into your project
    npm i --save @edx/frontend-app-gradebook npm install

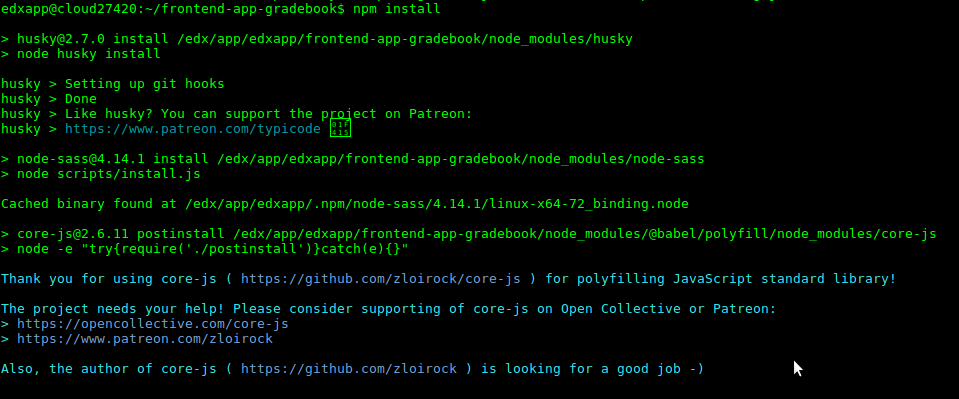

  6. Go to Frontend repo directory and install node modules.
    cd frontend-app-gradebook
    npm install install node modules

  7. Setup Oauth between LMS and the Writable Grades app

    1. Log into LMS-URL/admin. This is the Django Admin panel.

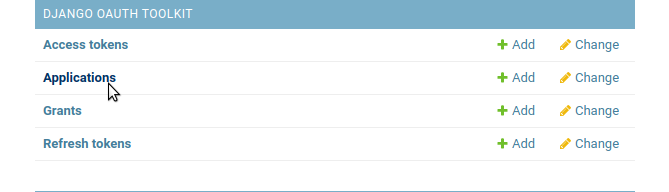

    2. From DJANGO OAUTH TOOLKIT, click Applications. OAuth Application

    3. Add a Application by clicking button. Add Flag

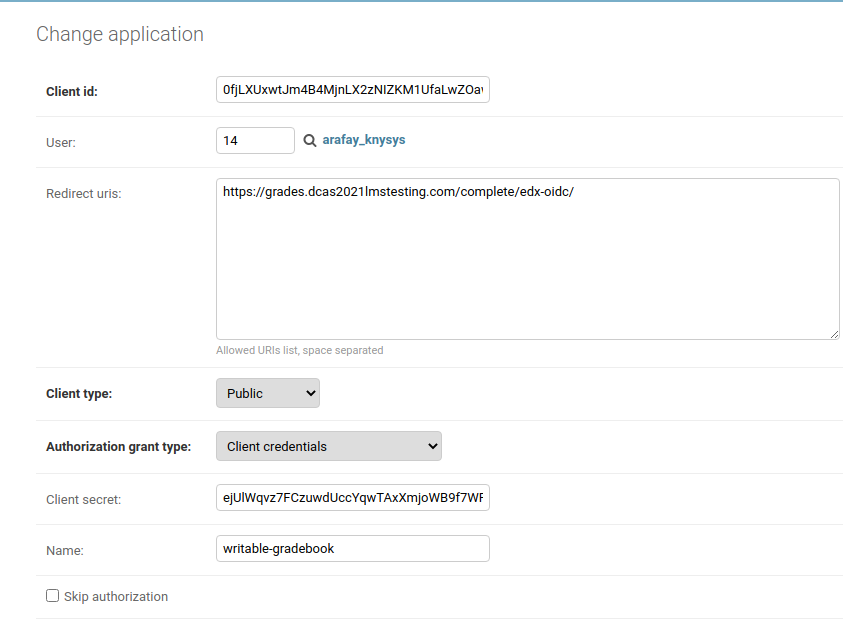

    4. Fill form using appropriate values. It would auto generate Client id and Client secret, save these for later use. OAuth2 provider grades

  8. To execute the gradebook on port 1994, but this teminates as terminal is closed.
    npm run start

  9. Update urls in .env.development file

    nano .env.development

    1. Update the following according to your urls.

       BASE_URL='SERVER_IP:1994'
 LMS_BASE_URL='SERVER_IP'
 LOGIN_URL='SERVER_IP/login'
 LOGOUT_URL='SERVER_IP/login'
 REFRESH_ACCESS_TOKEN_ENDPOINT='SERVER_IP/login_refresh'
 DATA_API_BASE_URL='SERVER_IP'
 LMS_CLIENT_ID=CLIENT ID GENERATED IN ABOVE STEP IN ADMIN PANEL

  10. If getting CORS error. In order to resolve we updated the lms.yml and studio.yml

     nano /edx/etc/lms.yml
 nano /edx/etc/studio.yml

    1. update the following flags

       CORS_ORIGIN_ALLOW_ALL: true
 ENABLE_CORS_HEADERS: true
 CORS_ORIGIN_WHITELIST: (Add your ip and port)
 WRITABLE_GRADEBOOK_URL: 'https://SERVER_IP:1994'

Restart the edx service by issuing the following command:

sudo /edx/bin/supervisorctl restart all

When running on domain with SSL configured

Perform the following to get gradebook running on domain with SSL configured.

  1. Configure sub domain and perform DNS configuration for grades.domain_name.

  2. Create a file in site-enabled in nginx to to get the port 1994 working on the subdomain created.

     vim /etc/nginx/sites-enabled/grades

    Paste the following code in the file.

     server {
   listen 80;
   server_name ~^((stage|prod)-)?grades.*;
 loacation / {
         proxy_pass http://localhost:1994;
         proxy_http_version 1.1;
         proxy_set_header Upgrade $http_upgrade;
         proxy_set_header Connection 'upgrade';
         proxy_set_header Host $host;
         proxy_cache_bypass $http_upgrade;
 }

  3. Create ssl certificate for the new created domain.

     sudo certbot -d LMS-URL,studio.LMS-URL,notes.LMS-URL,grades.LMS-URL --expand

  4. Update lms.yml and studio.yml

     nano /edx/etc/lms.yml
 nano /edx/etc/studio.yml

 1. Add subdomian in CORS_ORIGIN_WHITELIST
 CORS_ORIGIN_WHITELIST:
 - 'https://grades.LMS-URL'
 - 'grades.LMS-URL'

 1. Add subdomain in CSRF_TRUSTED_ORIGINS
 CSRF_TRUSTED_ORIGINS:
 - 'https://grades.LMS-URL'
 - 'grades.LMS-URL'

 1. Add subdomain in LOGIN_REDIRECT_WHITELIST
 LOGIN_REDIRECT_WHITELIST:
 - "grades.LMS-URL"
 - "https://grades.LMS-URL"

 1. Update WRITABLE_GRADEBOOK_URL
 WRITABLE_GRADEBOOK_URL: 'https://grades.LMS-URL'

  5. Update .env.dev

     nano frontend-app-gradebook/.env.development

 1. Update the following flags,

     DANGEROUSLY_DISABLE_HOST_CHECK=true
     DISABLE_HOST_CHECK=true
     HOST=LMS_URL
     BASE_URL='grades.LMS_URL'
     LMS_BASE_URL='https://LMS_URL'
     LOGIN_URL='https://LMS_URL/login'
     LOGOUT_URL='https://LMS_URL/login'
     REFRESH_ACCESS_TOKEN_ENDPOINT='https://LMS_URL/login_refresh'
     DATA_API_BASE_URL='https://LMS_URL'

  6. Update Redirect uris, in OAuth Application(LMS_URL/admin/oauth2_provider/application) from admin panel.

    OAuth2 provider grades

  7. Restart nginx service by issuing the following command:

     sudo service nginx restart

  8. Restart the edx service by issuing the following command:

     sudo /edx/bin/supervisorctl restart all

  9. Start the Writable gradebook service.

     cd frontend-app-gradebook
 npm run start -- --host 0.0.0.0 --disable-host-check

  10. The above command runs the frontend-app-gradebook, but stops as the terminal session gets end. Now run the frontend-app-gradebook as a service.

    1. Install pm2.

       sudo npm install -g pm2

    2. Start the application from pm2

       pm2 start npm --name "gradebook" -- start -- --host 0.0.0.0 --disable-host-check

    3. Now you can check the application in pm2

       pm2 list

    4. Applications that are running under PM2 will be restarted automatically if the application crashes or is killed, but an additional step needs to be taken to get the application to launch on system startup (boot or reboot). Run the following command using root user.

       pm2 startup systemd
